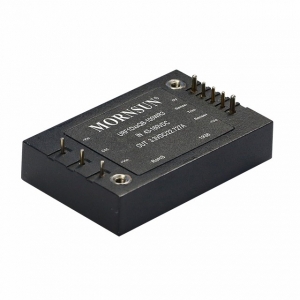

URF1D_QB-100W(H)R3(A5)(A6)
目前，我司产品的UL档案异常，2024年5月1日后的UL认证处于失效状态。我司正在积极沟通处理，不便之处敬请谅解。
产品特点：
URF1D_QB-100WR3系列是为铁路电源领域设计的一款高性能的产品，输出功率有100W，无最小负载要求，拥有43-160VDC宽电压输入，允许工作温度高达105℃，具有输入欠压保护、输出过压保护、短路保护、过温保护、远程遥控及补偿、输出电压调节等功能。 通过 EN50155 铁路标准，广泛运用于铁路系统及关联设备中。
展开查看更多
点击收起
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| URF1D03QB-100WR3A5 | 100 | 110(43-160) | 3.3 | 1 | 3000VAC | 接线式 | 135.00*70.00*20.45 | - | - | - | |
| URF1D05QB-100WR3A5 | 100 | 110(43-160) | 5 | 1 | 3000VAC | 接线式 | 135.00*70.00*20.45 | - | - | - | |
| URF1D48QB-100WR3A5 | 100 | 110(43-160) | 48 | 1 | 3000VAC | 接线式 | 135.00*70.00*22.60 | - | - | - | |
| URF1D03QB-100WHR3A5 | 100 | 110(43-160) | 3.3 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D05QB-100WHR3A5 | 100 | 110(43-160) | 5 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D12QB-100WHR3A5 | 100 | 110(43-160) | 12 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D15QB-100WHR3A5 | 100 | 110(43-160) | 15 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D24QB-100WHR3A5 | 100 | 110(43-160) | 24 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D48QB-100WHR3A5 | 100 | 110(43-160) | 48 | 1 | 3000VAC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF1D03QB-100WR3A6 | 100 | 110(43-160) | 3.3 | 1 | 3000VAC | 导轨式 | 137.00*70.00*21.45 | - | - | - | |
| URF1D05QB-100WR3A6 | 100 | 110(43-160) | 5 | 1 | 3000VAC | 导轨式 | 137.00*70.00*21.45 | - | - | - | |
| URF1D12QB-100WR3A6 | 100 | 110(43-160) | 12 | 1 | 3000VAC | 导轨式 | 137.00*70.00*23.60 | - | - | - | |
| URF1D24QB-100WR3A6 | 100 | 110(43-160) | 24 | 1 | 3000VAC | 导轨式 | 137.00*70.00*23.60 | - | - | - | |
| URF1D48QB-100WR3A6 | 100 | 110(43-160) | 48 | 1 | 3000VAC | 导轨式 | 137.00*70.00*23.60 | - | - | - | |
| URF1D03QB-100WHR3A6 | 100 | 110(43-160) | 3.3 | 1 | 3000VAC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF1D05QB-100WHR3A6 | 100 | 110(43-160) | 5 | 1 | 3000VAC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF1D12QB-100WHR3A6 | 100 | 110(43-160) | 12 | 1 | 3000VAC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF1D15QB-100WHR3A6 | 100 | 110(43-160) | 15 | 1 | 3000VAC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF1D24QB-100WHR3A6 | 100 | 110(43-160) | 24 | 1 | 3000VAC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF1D03QB-100WR3 | 100 | 110(43-160) | 3.3 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D05QB-100WR3 | 100 | 110(43-160) | 5 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D12QB-100WR3 | 100 | 110(43-160) | 12 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D15QB-100WR3 | 100 | 110(43-160) | 15 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D24QB-100WR3 | 100 | 110(43-160) | 24 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D48QB-100WR3 | 100 | 110(43-160) | 48 | 1 | 3000VAC | DIP | 60.80*39.20*12.70 | - | - | ||
| URF1D05QB-100WHR3 | 100 | 110(43-160) | 5 | 1 | 3000VAC | DIP | 61.50*39.20*27.70 | - | - | ||
| URF1D12QB-100WHR3 | 100 | 110(43-160) | 12 | 1 | 3000VAC | DIP | 61.50*39.20*27.70 | - | - | ||
| URF1D15QB-100WHR3 | 100 | 110(43-160) | 15 | 1 | 3000VAC | DIP | 61.50*39.20*27.70 | - | - | ||
| URF1D24QB-100WHR3 | 100 | 110(43-160) | 24 | 1 | 3000VAC | DIP | 61.50*39.20*27.70 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
-
