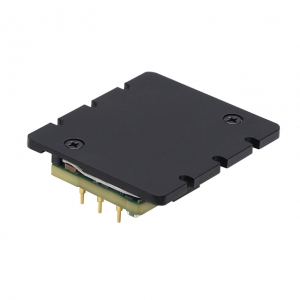

VCF48_QBO-400W(F/H)R3(-N)
目前，我司产品的UL档案异常，2024年5月1日后的UL认证处于失效状态。我司正在积极沟通处理，不便之处敬请谅解。
产品特点：
VCF48_QBO-400W(F/H)R3系列是为通信电源领域设计的一款高性能的产品，输出功率可达400W,无最小负载要求，拥有36-75VDC 宽电压输入，允许工作温度高达85℃，具有输入欠压保护、输出过压保护、 输出过流保护、 输出短路保护、 过温保护、 远程遥控及补 偿、 输出电压调节等功能， 通过外围满足 CISPR32/EN55032 CLASS B， 广泛应用于电池供电设备、 工控、 电力、 仪器仪表、 通信、 智 能机器人等领域。
展开查看更多
点击收起
R3.jpg)
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| VCF4812QBO-400WR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4812QBO-400WFR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4812QBO-400WHR3 | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4815QBO-400WR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4815QBO-400WFR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4815QBO-400WHR3 | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4824QBO-400WR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4824QBO-400WFR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4824QBO-400WHR3 | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4828QBO-400WR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4828QBO-400WFR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4828QBO-400WHR3 | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4812QBO-400WR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4812QBO-400WFR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4812QBO-400WHR3-N | 400 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4815QBO-400WR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4815QBO-400WFR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4815QBO-400WHR3-N | 400 | 48(36-75) | 15 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4824QBO-400WR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4824QBO-400WFR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4824QBO-400WHR3-N | 400 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - | ||
| VCF4828QBO-400WR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*12.9 | - | - | ||
| VCF4828QBO-400WFR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 62.0*56.0*14.7 | - | - | ||
| VCF4828QBO-400WHR3-N | 400 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 57.9*36.8*25.6 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
-
