VCF48_EBO-50W(F)R3-N
产品特点：
VCF48_EBO-50W(F)R3-N系列产品输出功率为50W，2:1宽电压输入范围，效率高达93%，2250VDC的常规隔离电压，允许工作温 度-40to+100℃，具有输入欠压保护，输出过压、过流、短路保护，过温保护功能，满足EN62368标准，广泛应用于工控、电力、 仪器仪表、通信等领域。
展开查看更多
点击收起

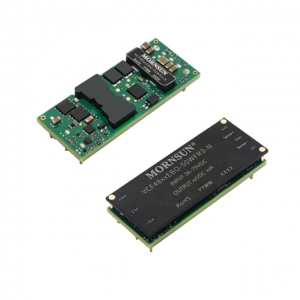

R3-N.jpg)
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| VCF4805EBO-50WR3-N | 50 | 48(36-75) | 5 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | |
| VCF4812EBO-50WR3-N | 50 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | |
| VCF4805EBO-50WFR3-N | 50 | 48(36-75) | 5 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | |
| VCF4812EBO-50WFR3-N | 50 | 48(36-75) | 12 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | |
| VCF4824EBO-50WR3-N | 50 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | |
| VCF4824EBO-50WFR3-N | 50 | 48(36-75) | 24 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | |
| VCF4803EBO-50WR3-N | 50 | 48(36-75) | 3.3 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | |
| VCF4803EBO-50WFR3-N | 50 | 48(36-75) | 3.3 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | |
| VCF4828EBO-50WR3-N | 50 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | - |
| VCF4828EBO-50WFR3-N | 50 | 48(36-75) | 28 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | - |
| VCF4848EBO-50WR3-N | 50 | 48(36-75) | 48 | 1 | 2250VDC | DIP | 58.42*22.86*9.69 | - | - | - | - |
| VCF4848EBO-50WFR3-N | 50 | 48(36-75) | 48 | 1 | 2250VDC | DIP | 58.42*22.86*12.70 | - | - | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
