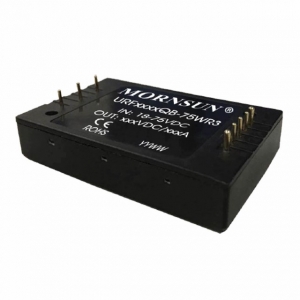

URF48_QB-75W(F/H)R3(A5)(A6)
产品特点：
URF48_QB-75WHR3系列产品输出功率为75W，4:1超宽电压输入范围，效率高达93%，隔离电压为2250VDC，允许工作温度为 -40℃ to +85℃，有输入欠压保护、输出过压保护、输出短路保护、过温保护、输出过流保护功能，通过外围满足 CISPR32/EN55032 CLASS B，广泛应用于电池供电设备、工控、电力、仪器仪表、铁路、通信、智能机器人等领域。
展开查看更多
点击收起
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| URF4805QB-75WR3 | 75 | 48(18-75) | 5 | 1 | 2250VDC | DIP | 61.8*40.2*12.7 | - | - | ||
| URF4812QB-75WR3 | 75 | 48(18-75) | 12 | 1 | 2250VDC | DIP | 61.8*40.2*12.7 | - | - | ||
| URF4815QB-75WR3 | 75 | 48(18-75) | 15 | 1 | 2250VDC | DIP | 61.8*40.2*12.7 | - | - | ||
| URF4824QB-75WR3 | 75 | 48(18-75) | 24 | 1 | 2250VDC | DIP | 61.8*40.2*12.7 | - | - | ||
| URF4848QB-75WR3 | 75 | 48(18-75) | 48 | 1 | 2250VDC | DIP | 61.8*40.2*12.7 | - | - | ||
| URF4805QB-75WFR3 | 75 | 48(18-75) | 5 | 1 | 2250VDC | DIP | 62.0*56.0*14.6 | - | - | ||
| URF4805QB-75WHR3 | 75 | 48(18-75) | 5 | 1 | 2250VDC | DIP | 61.8*40.2*27.7 | - | - | ||
| URF4812QB-75WFR3 | 75 | 48(18-75) | 12 | 1 | 2250VDC | DIP | 62.0*56.0*14.6 | - | - | ||
| URF4812QB-75WHR3 | 75 | 48(18-75) | 12 | 1 | 2250VDC | DIP | 61.8*40.2*27.7 | - | - | ||
| URF4815QB-75WFR3 | 75 | 48(18-75) | 15 | 1 | 2250VDC | DIP | 62.0*56.0*14.6 | - | - | ||
| URF4815QB-75WHR3 | 75 | 48(18-75) | 15 | 1 | 2250VDC | DIP | 61.8*40.2*27.7 | - | - | ||
| URF4824QB-75WFR3 | 75 | 48(18-75) | 24 | 1 | 2250VDC | DIP | 62.0*56.0*14.6 | - | - | ||
| URF4824QB-75WHR3 | 75 | 48(18-75) | 24 | 1 | 2250VDC | DIP | 61.8*40.2*27.7 | - | - | ||
| URF4848QB-75WFR3 | 75 | 48(18-75) | 48 | 1 | 2250VDC | DIP | 62.0*56.0*14.6 | - | - | ||
| URF4848QB-75WHR3 | 75 | 48(18-75) | 48 | 1 | 2250VDC | DIP | 61.8*40.2*27.7 | - | - | ||
| URF4848QB-75WR3A5 | 75 | 48(18-75) | 48 | 1 | 2250VDC | 接线式 | 135.00*70.00*22.6 | - | - | - | |
| URF4824QB-75WR3A5 | 75 | 48(18-75) | 24 | 1 | 2250VDC | 接线式 | 135.00*70.00*22.6 | - | - | ||
| URF4815QB-75WR3A5 | 75 | 48(18-75) | 15 | 1 | 2250VDC | 接线式 | 135.00*70.00*22.6 | - | - | - | |
| URF4812QB-75WR3A5 | 75 | 48(18-75) | 12 | 1 | 2250VDC | 接线式 | 135.00*70.00*22.6 | - | - | - | |
| URF4805QB-75WR3A5 | 75 | 48(18-75) | 5 | 1 | 2250VDC | 接线式 | 135.00*70.00*22.6 | - | - | - | |
| URF4848QB-75WR3A6 | 75 | 48(18-75) | 48 | 1 | 2250VDC | 导轨式 | 137.00*70.00*28.10 | - | - | - | |
| URF4824QB-75WR3A6 | 75 | 48(18-75) | 24 | 1 | 2250VDC | 导轨式 | 137.00*70.00*28.10 | - | - | - | |
| URF4815QB-75WR3A6 | 75 | 48(18-75) | 15 | 1 | 2250VDC | 导轨式 | 137.00*70.00*28.10 | - | - | - | |
| URF4812QB-75WR3A6 | 75 | 48(18-75) | 12 | 1 | 2250VDC | 导轨式 | 137.00*70.00*28.10 | - | - | - | |
| URF4805QB-75WR3A6 | 75 | 48(18-75) | 5 | 1 | 2250VDC | 导轨式 | 137.00*70.00*28.10 | - | - | - | |
| URF4848QB-75WHR3A5 | 75 | 48(18-75) | 48 | 1 | 2250VDC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF4824QB-75WHR3A5 | 75 | 48(18-75) | 24 | 1 | 2250VDC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF4815QB-75WHR3A5 | 75 | 48(18-75) | 15 | 1 | 2250VDC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF4812QB-75WHR3A5 | 75 | 48(18-75) | 12 | 1 | 2250VDC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF4805QB-75WHR3A5 | 75 | 48(18-75) | 5 | 1 | 2250VDC | 接线式(带散热片) | 135.00*70.00*36.20 | - | - | - | |
| URF4848QB-75WHR3A6 | 75 | 48(18-75) | 48 | 1 | 2250VDC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF4824QB-75WHR3A6 | 75 | 48(18-75) | 24 | 1 | 2250VDC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | ||
| URF4815QB-75WHR3A6 | 75 | 48(18-75) | 15 | 1 | 2250VDC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF4812QB-75WHR3A6 | 75 | 48(18-75) | 12 | 1 | 2250VDC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - | |
| URF4805QB-75WHR3A6 | 75 | 48(18-75) | 5 | 1 | 2250VDC | 导轨式(带散热片) | 137.00*70.00*37.20 | - | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
-
