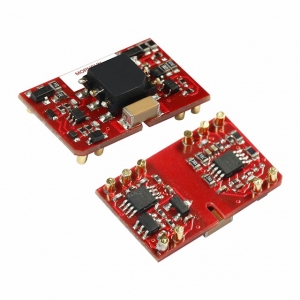

TNxxxT
产品特点：
TNxxxT系列是一种小体积、前级电压信号输入，后级电压/电流信号输出的无源隔离模块。采用的电路方案为原边它激驱动，双MOS管斩波调制，副边自驱动同步整流解调，实现模拟电压信号隔离传输。此模块为两隔离，电源输入、信号输入和信号输出之间隔离，且该系列产品增加了外部零点、满度调节端，可根据需求自行设计调节。
展开查看更多
点击收起
-
型号标题
-
输入信号
-
输出信号
-
输入电压(VDC)
-
输出电压(VDC)
-
封装形式
-
资料下载 (3D/PCB封装库/原理图库)
技术
手册样品
申请
| TN555T | 0~10V | 0~10V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN655T | 0~5V | 0~10V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN755T | 0~2.5V | 0~10V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN565T | 0~10V | 0~5V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN575T | 0~10V | 0~2.5V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN875T | 0.5~2.5V | 0~2.5V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN865T | 0.5~2.5V | 0~5V | Power1:12,Power2:12 | - | SMD16 | - | - | |
| TN511T | 0~10V | 4~20mA | Power1:12,Power2:15 | - | SMD16 | - | - | |
| TN611T | 0~5V | 4~20mA | Power1:12,Power2:15 | - | SMD16 | - | - | |
| TN711T | 0~2.5V | 4~20mA | Power1:12,Power2:15 | - | SMD16 | - | - | |
| TN521T | 0~10V | 0~20mA | Power1:12,Power2:15 | - | SMD16 | - | - | |
| TN621T | 0~5V | 0~20mA | Power1:12,Power2:15 | - | SMD16 | - | - | |
| TN721T | 0~2.5V | 0~20mA | Power1:12,Power2:15 | - | SMD16 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
