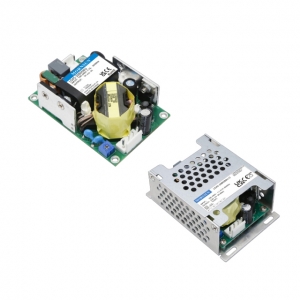

LO45-20BxxMU(-C)
产品特点：
LO45-20BxxMU----是金升阳为客户开发的符合医疗行业标准的专用电源。该系列电源具有交直流两用、低功耗、高效率、高可靠性、 安全隔离等优点。产品安全可靠，EMC性能好，EMC及安全规格满足UL/IEC/EN/ES60601、UL/EN/IEC62368、IEC/EN60335、 IEC/EN61558、GB4943标准。广泛应用于工控、LED、路灯控制、电力、安防、通讯、智能家居、医疗等领域。
展开查看更多
点击收起
.jpg)
-
型号标题
-
功率(W)
-
输入电压(VAC)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出电流
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| LO45-20B03MU | 26.4 | 85-264 | 100-370 | 3.3 | 8A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B03MU-C | 26.4 | 85-264 | 100-370 | 3.3 | 8A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B05MU | 40 | 85-264 | 100-370 | 5 | 8A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B05MU-C | 40 | 85-264 | 100-370 | 5 | 8A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B12MU | 45 | 85-264 | 100-370 | 12 | 3.75A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B15MU | 45 | 85-264 | 100-370 | 15 | 3A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B24MU | 45 | 85-264 | 100-370 | 24 | 1.875A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B36MU | 45 | 85-264 | 100-370 | 36 | 1.25A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B48MU | 45 | 85-264 | 100-370 | 48 | 0.94A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B30MU | 45 | 85-264 | 100-370 | 30 | 1.5A | 1 | 4000VAC | 开板 | 76.20*50.80*26.50 | - | - | ||
| LO45-20B12MU-C | 45 | 85-264 | 100-370 | 12 | 3.75A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B15MU-C | 45 | 85-264 | 100-370 | 15 | 3A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B24MU-C | 45 | 85-264 | 100-370 | 24 | 1.875A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B30MU-C | 45 | 85-264 | 100-370 | 30 | 1.5A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B36MU-C | 45 | 85-264 | 100-370 | 36 | 1.25A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - | ||
| LO45-20B48MU-C | 45 | 85-264 | 100-370 | 48 | 0.94A | 1 | 4000VAC | 鼠笼式 | 91.40*60.50*33.30 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
