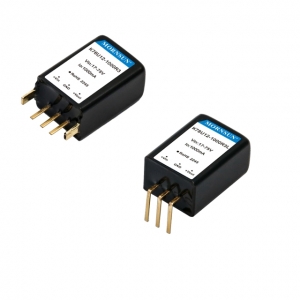

K78Uxx-1000R3(L)
产品特点：
K78Uxx-1000R3(L)系列是高效率的开关稳压器。它具有效率高，空载功耗低，短路保护功能等特性。产品可广泛应用于工控、电力、 仪表等多个行业。
展开查看更多
点击收起
.jpg)
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出电流
-
输出
路数 -
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| K78U03-1000R3 | 3.3 | 48(9-75) | 3.3 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U03-1000R3L | 3.3 | 48(9-75) | 3.3 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78U05-1000R3 | 5 | 48(9-75) | 5 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U05-1000R3L | 5 | 48(9-75) | 5 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78UX6-1000R3 | 6.5 | 48(9-75) | 6.5 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78UX6-1000R3L | 6.5 | 48(9-75) | 6.5 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78U09-1000R3 | 9 | 48(14-75) | 9 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U09-1000R3L | 9 | 48(14-75) | 9 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78U12-1000R3 | 12 | 48(17-75) | 12 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U12-1000R3L | 12 | 48(17-75) | 12 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78U15-1000R3 | 15 | 48(21-75) | 15 | 1000mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U15-1000R3L | 15 | 48(21-75) | 15 | 1000mA | 1 | SIP | 20.35*12.10*8.60 | - | - | ||
| K78U24-700R3 | 16.8 | 48(33-75) | 24 | 700mA | 1 | SIP | 12.10*8.60*17.50 | - | - | ||
| K78U24-700R3L | 16.8 | 48(33-75) | 24 | 700mA | 1 | SIP | 20.35*12.10*8.60 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
