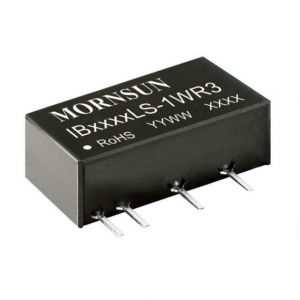

IB_LS-1WR3
产品特点：
IB_LS-1WR3系列产品是专门针对板上电源系统中需要产生一组与输入电源隔离的电压的应用场合而设计的。该产品适用于：前级干扰隔离场合，地干扰消除场合，纯数字电路场合，电压隔离转换场合，一般低频模拟电路场合，继电器驱动电路场合等。
展开查看更多
点击收起
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| IB1205LS-1WR3 | 1 | 12 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB1209LS-1WR3 | 1 | 12 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB1212LS-1WR3 | 1 | 12 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB1215LS-1WR3 | 1 | 12 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB1505LS-1WR3 | 1 | 15 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB1515LS-1WR3 | 1 | 15 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB2403LS-1WR3 | 1 | 24 | 3.3 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB2405LS-1WR3 | 1 | 24 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB2409LS-1WR3 | 1 | 24 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB2412LS-1WR3 | 1 | 24 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB2415LS-1WR3 | 1 | 24 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0503LS-1WR3 | 1 | 5 | 3.3 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0505LS-1WR3 | 1 | 5 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0509LS-1WR3 | 1 | 5 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0512LS-1WR3 | 1 | 5 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0515LS-1WR3 | 1 | 5 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| IB0524LS-1WR3 | 1 | 5 | 24 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
