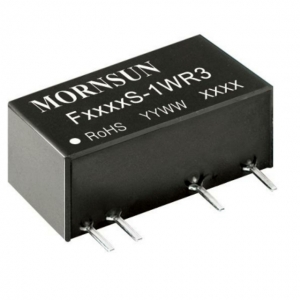

F_S-1WR3
目前，我司产品的UL档案异常，2024年5月1日后的UL认证处于失效状态。我司正在积极沟通处理，不便之处敬请谅解。
产品特点：
F_S-1WR3系列产品是专门针对线路板上分布式电源系统中需要产生两组与输入电源隔离的电压的应用场合而设计的。该产品适用于：纯数字电路，一般低频模拟电路，继电器驱动电路，数据交换电路等
展开查看更多
点击收起
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| F0303S-1WR3 | 1 | 3.3 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| F0305S-1WR3 | 1 | 3.3 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| F0503S-1WR3 | 1 | 5 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0505S-1WR3 | 1 | 5 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0509S-1WR3 | 1 | 5 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0512S-1WR3 | 1 | 5 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0515S-1WR3 | 1 | 5 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0524S-1WR3 | 1 | 5 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1203S-1WR3 | 1 | 12 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1205S-1WR3 | 1 | 12 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1209S-1WR3 | 1 | 12 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1212S-1WR3 | 1 | 12 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1215S-1WR3 | 1 | 12 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1224S-1WR3 | 1 | 12 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1505S-1WR3 | 1 | 15 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1509S-1WR3 | 1 | 15 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1512S-1WR3 | 1 | 15 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F1515S-1WR3 | 1 | 15 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2403S-1WR3 | 1 | 24 | 3.3 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2405S-1WR3 | 1 | 24 | 5 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2409S-1WR3 | 1 | 24 | 9 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2412S-1WR3 | 1 | 24 | 12 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2415S-1WR3 | 1 | 24 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F2424S-1WR3 | 1 | 24 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| F0315S-1WR3 | 1 | 3.3 | 15 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| F0324S-1WR3 | 1 | 3.3 | 24 | 1 | 3000VDC | SIP | 19.65*6.00*10.16 | - | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
-
