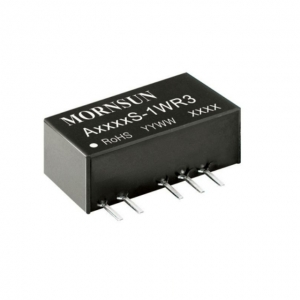

A_S-1WR3
目前，我司产品的UL档案异常，2024年5月1日后的UL认证处于失效状态。我司正在积极沟通处理，不便之处敬请谅解。
产品特点：
A_S-1WR3系列产品是专门针对线路板上分布式电源系统中需要产生一组(两组)与输入电源隔离的电源的应用场合而设计的。该产品适用于：纯数字电路，一般低频模拟电路，继电器驱动电路，数据交换电路等。
展开查看更多
点击收起
-
型号标题
-
功率(W)
-
输入电压(VDC)
-
输出电压(VDC)
-
输出
路数 -
隔离电压
-
封装形式
-
封装尺寸(mm)
-
资料下载 (3D/PCB封装库/原理图库)
-
认证/标准
技术
手册样品
申请
| A0305S-1WR3 | 1 | 3.3 | ±5 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| A0503S-1WR3 | 1 | 5 | ±3.3 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A0505S-1WR3 | 1 | 5 | ±5 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A0509S-1WR3 | 1 | 5 | ±9 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A0512S-1WR3 | 1 | 5 | ±12 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A0515S-1WR3 | 1 | 5 | ±15 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A0524S-1WR3 | 1 | 5 | ±24 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1203S-1WR3 | 1 | 12 | ±3.3 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1205S-1WR3 | 1 | 12 | ±5 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1212S-1WR3 | 1 | 12 | ±12 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1215S-1WR3 | 1 | 12 | ±15 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1224S-1WR3 | 1 | 12 | ±24 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1505S-1WR3 | 1 | 15 | ±5 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1512S-1WR3 | 1 | 15 | ±12 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1515S-1WR3 | 1 | 15 | ±15 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A2405S-1WR3 | 1 | 24 | ±5 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A2412S-1WR3 | 1 | 24 | ±12 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A2415S-1WR3 | 1 | 24 | ±15 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | ||
| A1209S-1WR3 | 1 | 12 | ±9 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| A2409S-1WR3 | 1 | 24 | ±9 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - | - | |
| A2424S-1WR3 | 1 | 24 | ±24 | 2 | 1500VDC | SIP | 19.65*6.00*10.16 | - | - |
* 上方产品参数仅供参考，详细技术参数请以技术规格书为准
