助力5G行业加速升级,金升阳经济型电源VCB/F系列重磅上市



一、产品介绍

金升阳最新发布的开板式经济型电源VCB/F系列，使用自主研发的IC，从内部器件实现国产化，具有高性能、小体积、高功率密度的特点，助力5G行业发展。

国产IC，关键器件自主可控

在国产化浪潮的大趋势下，国产化IC可使我司产品不受外部环境影响，持续稳定维持供货，为客户及终端项目的稳定运行保驾护航。金升阳自主研发芯片与同类型其他芯片在性能相当前提下，价格更低，性价比更高。

性能优异，可靠性高

此系列经济型电源产品满足IEC/UL/EN62368及DOSA标准，工作温度范围宽至-40℃ to +100℃，具有优良的温度降额曲线，隔离电压为1500VDC，纹波噪声低至100mV，输出效率高达93%。轻载（10%）效率高达85%，空载损耗低至0.96W，可大幅降低客户系统待机功耗。

保护齐全，环境适应性强

除此之外，此系列产品所有器件均涂覆三防漆，保护线路板免受坏境的侵蚀,具有输入欠压保护、过流、短路等保护功能，可有效防止客户系统或设备工作异常造成不必要的损失。

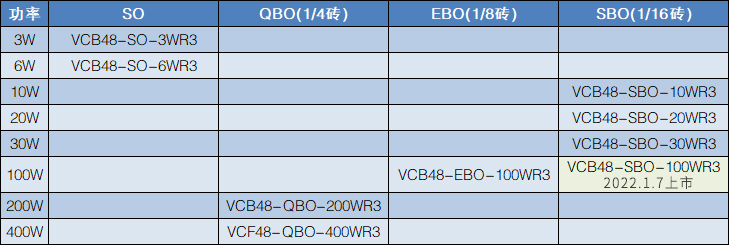

多种封装尺寸




二、产品应用

可广泛应用于工控、电力、仪器仪表、通信等领域。

典型应用：光模块交换机系统、服务器、基站、中继系统等。




三、产品特点

●工作温度范围：-40℃ to +85℃、-40℃ to +100℃

●输出效率高达93%

●纹波噪声低至100mV

●EMI性能满足CISPR32/EN55032 ClassA

●满足 IEC/UL/EN62368、DOSA标准

详细产品技术参数请参考技术手册：
数据加载中

  • 型号

  • 功率(W)

  • 输入电压(VDC)

  • 输出电压(VDC)

  • 输出路数

  • 隔离电压

  • 封装形式

  • 封装尺寸(mm)

  • 资料下载 (3D/PCB封装库/原理图库)

  • 认证/标准

  • 技术
    手册

  • 样品
    申请

VCB4805SO-3WR3 3 48(36-75) 5 1 1500VDC SIP 22.00*8.20*12.80
VCB4812SO-3WR3 3 48(36-75) 12 1 1500VDC SIP 22.00*8.20*12.80
VCB4815SO-3WR3 3 48(36-75) 15 1 1500VDC SIP 22.00*8.20*12.80
VCB4824SO-3WR3 3 48(36-75) 24 1 1500VDC SIP 22.00*8.20*12.80
VCB4805SO-6WR3 6 48(36-75) 5 1 1500VDC SIP 22.00*12.80*8.20
VCB4812SO-6WR3 6 48(36-75) 12 1 1500VDC SIP 22.00*12.80*8.20
VCB4815SO-6WR3 6 48(36-75) 15 1 1500VDC SIP 22.00*12.80*8.20
VCB4824SO-6WR3 6 48(36-75) 24 1 1500VDC SIP 22.00*12.80*8.20
VCB4805SBO-10WR3 10 48(36-75) 5 1 1500VDC DIP 33.02*22.86*11.40
VCB4812SBO-10WR3 10 48(36-75) 12 1 1500VDC DIP 33.02*22.86*11.40
VCB4815SBO-10WR3 10 48(36-75) 15 1 1500VDC DIP 33.02*22.86*11.40
VCB4824SBO-10WR3 10 48(36-75) 24 1 1500VDC DIP 33.02*22.86*11.40
VCB4803SBO-20WR3 20 48(36-75) 3.3 1 1500VDC DIP 33.02*22.86*12.60
VCB4805SBO-20WR3 20 48(36-75) 5 1 1500VDC DIP 33.02*22.86*12.60
VCB4812SBO-20WR3 20 48(36-75) 12 1 1500VDC DIP 33.02*22.86*12.60
VCB4815SBO-20WR3 20 48(36-75) 15 1 1500VDC DIP 33.02*22.86*12.60
VCB4824SBO-20WR3 20 48(36-75) 24 1 1500VDC DIP 33.02*22.86*12.60
VCB4828SBO-20WR3 20 48(36-75) 28 1 1500VDC DIP 33.02*22.86*12.60
VCB4805SBO-30WR3 30 48(36-75) 5 1 1500VDC DIP 33.02*22.86*9.18
VCB4812SBO-30WR3 30 48(36-75) 12 1 1500VDC DIP 33.02*22.86*9.18
VCB4815SBO-30WR3 30 48(36-75) 15 1 1500VDC DIP 33.02*22.86*9.18
VCB4824SBO-30WR3 30 48(36-75) 24 1 1500VDC DIP 33.02*22.86*9.18
VCB4828SBO-30WR3 30 48(36-75) 28 1 1500VDC DIP 33.02*22.86*9.18
-
VCB4805EBO-100WFR3 100 48(36-75) 5 1 1500VDC DIP 58.42*22.86*12.7 -
VCB4805EBO-100WR3 100 48(36-75) 5 1 1500VDC DIP 58.42*22.86*9.69
VCB4805SBO-100WFR3 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*12.70
VCB4805SBO-100WFR3-N 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*12.70
VCB4805SBO-100WR3 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*9.75
VCB4805SBO-100WR3-N 100 48(36-75) 5 1 1500VDC DIP 33.02*22.86*9.75
VCB4812EBO-100WFR3 100 48(36-75) 12 1 1500VDC DIP 58.42*22.86*12.7 -
VCB4812EBO-100WR3 100 48(36-75) 12 1 1500VDC DIP 58.42*22.86*9.69
VCB4812SBO-100WFR3 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*12.70
VCB4812SBO-100WFR3-N 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*12.70
VCB4812SBO-100WR3 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*9.75
VCB4812SBO-100WR3-N 100 48(36-75) 12 1 1500VDC DIP 33.02*22.86*9.75
VCB4815EBO-100WFR3 100 48(36-75) 15 1 1500VDC DIP 58.42*22.86*12.7 -
VCB4815EBO-100WR3 100 48(36-75) 15 1 1500VDC DIP 58.42*22.86*9.69
VCB4815SBO-100WFR3-N 100 48(36-75) 15 1 1500VDC DIP 33.02*22.86*13.00
-
VCB4815SBO-100WR3-N 100 48(36-75) 15 1 1500VDC DIP 33.02*22.86*10.05
-
VCB4824EBO-100WFR3 100 48(36-75) 24 1 1500VDC DIP 58.42*22.86*12.7 -
VCB4824EBO-100WR3 100 48(36-75) 24 1 1500VDC DIP 58.42*22.86*9.69
VCB4828EBO-100WFR3 100 48(36-75) 28 1 1500VDC DIP 58.42*22.86*12.7 -
VCB4828EBO-100WR3 100 48(36-75) 28 1 1500VDC DIP 58.42*22.86*9.69
VCB4828SBO-100WFR3 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*13.00
VCB4828SBO-100WFR3-N 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*13.00
VCB4828SBO-100WR3 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*10.05
VCB4828SBO-100WR3-N 100 48(36-75) 28 1 1500VDC DIP 33.02*22.86*10.05
VCB4805QBO-200WR3 200 48(36-75) 5 1 1500VDC DIP 57.9*36.80*10.05
VCB4805QBO-200WR3-N 200 48(36-75) 5 1 1500VDC DIP 57.9*36.80*10.05
VCB4812QBO-200WR3 200 48(36-75) 12 1 1500VDC DIP 57.9*36.80*10.05
VCB4812QBO-200WR3-N 200 48(36-75) 12 1 1500VDC DIP 57.9*36.80*10.05
VCB4815QBO-200WR3 200 48(36-75) 15 1 1500VDC DIP 57.9*36.80*10.05
VCB4815QBO-200WR3-N 200 48(36-75) 15 1 1500VDC DIP 57.9*36.80*10.05
VCB4824QBO-200WR3 200 48(36-75) 24 1 1500VDC DIP 57.9*36.80*10.05
VCB4824QBO-200WR3-N 200 48(36-75) 24 1 1500VDC DIP 57.9*36.80*10.05
VCF4812QBO-400WFR3 400 48(36-75) 12 1 2250VDC DIP 62.0*56.0*14.7
VCF4812QBO-400WFR3-N 400 48(36-75) 12 1 2250VDC DIP 62.0*56.0*14.7
VCF4812QBO-400WHR3 400 48(36-75) 12 1 2250VDC DIP 57.9*36.8*25.6
VCF4812QBO-400WHR3-N 400 48(36-75) 12 1 2250VDC DIP 57.9*36.8*25.6
VCF4812QBO-400WR3 400 48(36-75) 12 1 2250VDC DIP 57.9*36.8*12.9
VCF4812QBO-400WR3-N 400 48(36-75) 12 1 2250VDC DIP 57.9*36.8*12.9
VCF4815QBO-400WFR3 400 48(36-75) 15 1 2250VDC DIP 62.0*56.0*14.7
VCF4815QBO-400WFR3-N 400 48(36-75) 15 1 2250VDC DIP 62.0*56.0*14.7
VCF4815QBO-400WHR3 400 48(36-75) 15 1 2250VDC DIP 57.9*36.8*25.6
VCF4815QBO-400WHR3-N 400 48(36-75) 15 1 2250VDC DIP 57.9*36.8*25.6
VCF4815QBO-400WR3 400 48(36-75) 15 1 2250VDC DIP 57.9*36.8*12.9
VCF4815QBO-400WR3-N 400 48(36-75) 15 1 2250VDC DIP 57.9*36.8*12.9
VCF4824QBO-400WFR3 400 48(36-75) 24 1 2250VDC DIP 62.0*56.0*14.7
VCF4824QBO-400WFR3-N 400 48(36-75) 24 1 2250VDC DIP 62.0*56.0*14.7
VCF4824QBO-400WHR3 400 48(36-75) 24 1 2250VDC DIP 57.9*36.8*25.6
VCF4824QBO-400WHR3-N 400 48(36-75) 24 1 2250VDC DIP 57.9*36.8*25.6
VCF4824QBO-400WR3 400 48(36-75) 24 1 2250VDC DIP 57.9*36.8*12.9
VCF4824QBO-400WR3-N 400 48(36-75) 24 1 2250VDC DIP 57.9*36.8*12.9
VCF4828QBO-400WFR3 400 48(36-75) 28 1 2250VDC DIP 62.0*56.0*14.7
VCF4828QBO-400WFR3-N 400 48(36-75) 28 1 2250VDC DIP 62.0*56.0*14.7
VCF4828QBO-400WHR3 400 48(36-75) 28 1 2250VDC DIP 57.9*36.8*25.6
VCF4828QBO-400WHR3-N 400 48(36-75) 28 1 2250VDC DIP 57.9*36.8*25.6
VCF4828QBO-400WR3 400 48(36-75) 28 1 2250VDC DIP 57.9*36.8*12.9
VCF4828QBO-400WR3-N 400 48(36-75) 28 1 2250VDC DIP 57.9*36.8*12.9
